• On-site measuring, in-time reading
  • 4 modes available to cover all facets
  • Continuous monitor and nothing can vanish from your sight
  • Complete storage for your access anytime, anywhere!
  • Touchpad interface, easy and user-friendly even for newcomers
  • Encryption WiFi SD transmission: MK350N WiFi-SD Solution
  • On-site measuring, in-time reading
  • 4 modes available to cover all facets
  • Continuous monitor and nothing can vanish from your sight
  • Complete storage for your access anytime, anywhere!
  • Touchpad interface, easy and user-friendly even for newcomers
On-site measuring, in-time reading!
◆ On-site measuring, in-time reading!
Just bring your portable MK350N to the site and point it directly to testing light source, then push "integrate button", the spectrum graphic will show up in no time, connecting to PC won't be a need anymore.
◆ Clear-cut data list, your reading is also clear at the first sight!
In Simple mode, you can also read CCT(Correlative Color Temperature)、CRI(Color Rendering Index)、Lux (Illuminance)、λP (Peak Wavellength) directly without the need of mode switching.

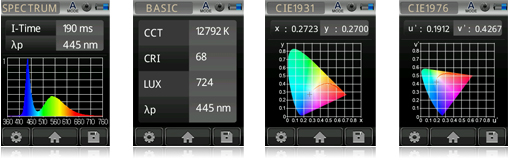

◆ 4 modes available to cover all facets
Mode 1:Spectrum Graph Mode
Mode 2:Under Basic Value Mode, to read CCT(Correlative Color Temperature)、CRI(Color Rendering Index)、Lux (Illuminance)、λP (Peak Wavellength)
Mode 3:CIE 1931 Chromaticity Diagram Mode
Mode 4:CIE1976 Chromaticity Diagram Mode
With these 4 modes, you can switch directly from one to any another as you request
4 modes available to cover all facets
◆ Continuous monitor and nothing can vanish from your sight
Except for the single-time capture mode, MK350N is also proud of its continuous capture mode which allows users to adjust the light source's Chromaticity, or to patrol along the light sources to measure the interior lighting. The data (on-screen display) snaps and updates once per second so as to get real and complete pictures in dynamic case.
Continuous monitor and nothing can vanish from your sight

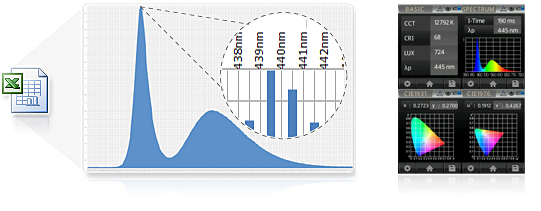

◆ Complete storage for your access anytime, anywhere!
All captured data are stored in SD card, in both Excel and BMP file formats, the former is for keeping spectrum information, and the other is for the 4 modes' diagrams. Both can be transferred via USB port connection.
Complete storage for your access anytime, anywhere!
◆ Touchpad interface, easy and user-friendly even for newcomers
MK350N combines the latest OS, humanized-design interface, straightward Manu, and all these combines in one 3.5' touchpad, even newcomers can use without any difficulty.
Touchpad interface, easy and user-friendly even for newcomers
